Being able to control the speed of a DC motor is crucial if you want to get the best performance out of it. Whether you’re building a robot or an electric vehicle, if you don’t control the speed of the motor, it’s going to be inefficient and unreliable.
In this guide, I’ll show you how to control the speed of a DC motor so your projects will be successful.
To control the speed of a DC motor, you can adjust the voltage of the power supply using a potentiometer or use a PWM controller. This way, you get consistent torque across the speed range without needing any extra parts.
Let’s dive into the different ways you can control the speed of a DC motor.
1. What is the Most Common Way to Control the Speed of a DC Motor
The most common way to control the speed of a DC motor is through Armature Resistance Control. This means you adjust the resistance in series with the motor’s armature winding. When you increase the resistance, you increase the voltage drop across the armature, which reduces the motor’s driving voltage and slows it down.
2. Comparing Different Speed Control Methods
Understanding the different ways to control speed helps you choose the best way for your application. Here are a few of the ways you can control speed:
● Voltage Control:
You change the voltage going to the motor. This is a simple way to control speed, but it’s not very efficient at lower speeds.
● PWM Control:

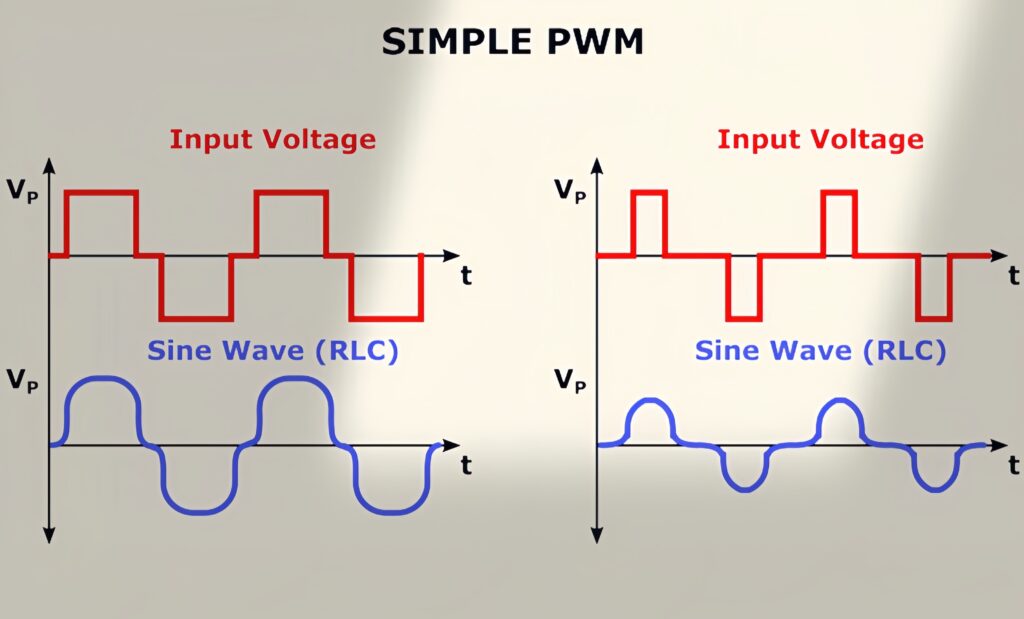

You use Pulse Width Modulation to control the speed of the motor by turning the voltage on and off really fast. This is a very efficient way to control speed, and you have very precise control.
● Armature Control:
You change the resistance in the armature to control speed. This is an older way to control speed, but it’s still used in some applications where you need very precise control.
Each of these methods has its advantages and disadvantages, and you need to think about what you’re trying to do to decide which one is best for you.
3. How Do We Control the Speed of a DC Series Motor
We control the speed of a DC series motor by changing the flux. We can do this with a Field Diverter, Tapped Field Control, or by Paralleling Field coils. Each method has its own advantages, depending on the application and how precise you need to be.
4. Technical Guidance and Best Practices for DC Motor Speed Control
To control motor speed effectively, you need to know the technical guidelines and best practices:
● Right Size
Make sure the motor is the right size for the load. If you overload a motor, it will overheat and fail.
● Good Components
Use good components so you don’t have problems. If you use cheap or low-quality parts, you’ll have problems and reduce the life of your system.
● Calibrate
Calibrate your control system on a regular basis to keep it working right. This means checking and adjusting your system to make sure it’s doing what you want it to do.
● Safety
Put safety features in place to protect the motor and the operator. This includes overcurrent protection, thermal shutdown, and emergency stop devices.
5. How to Control the Speed of a DC Motor with an Arduino
Step 1：Get Your Stuff:
You’ll need an Arduino board, a DC motor, a motor driver (like L298N), a potentiometer, and some wires.
Step 2: Wire Up the Motor Driver:
Connect the motor to the motor driver’s output terminals. Connect the motor driver’s input terminals to the Arduino’s PWM pins.
Step 3: Wire Up the Potentiom
Connect the potentiometer to an analog input pin on the Arduino.
Step 4: Write the Code:
Write an Arduino program that reads the potentiometer value and adjusts the PWM signal accordingly.
Step 5: Test It Out:
Upload the code to the Arduino and test it out. Turn the potentiometer to see the motor speed change.

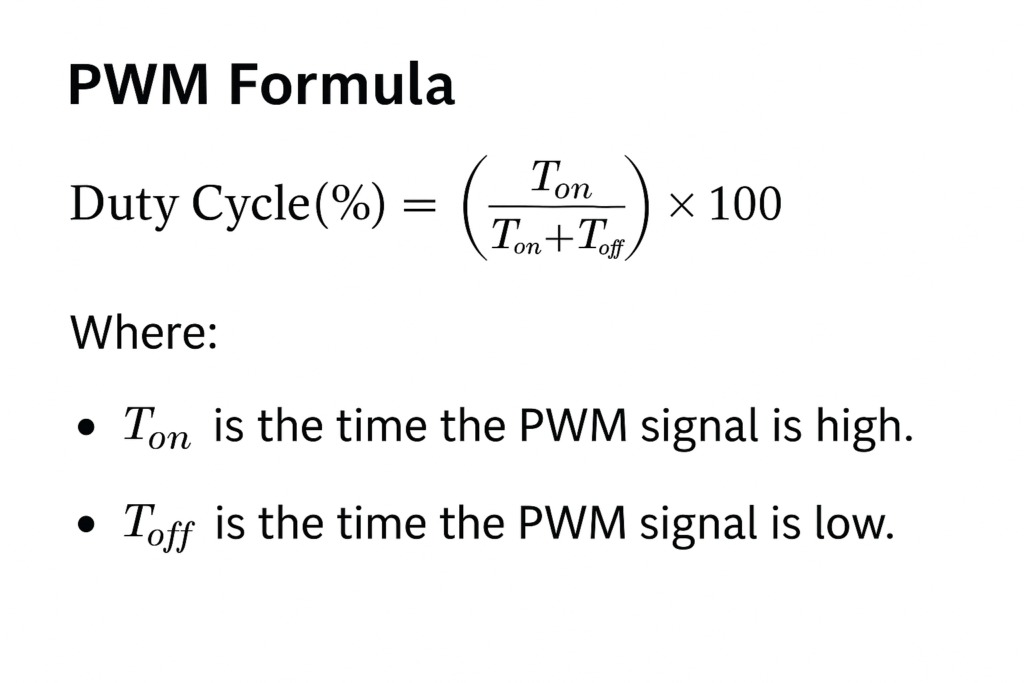

Or, if you want to control the speed of a DC motor, you can use this formula for Pulse Width Modulation (PWM):
By changing the on and off time, you can change the average voltage that is applied to the motor and, therefore, change the speed of the motor.
6. How to Control the Speed of a DC Motor with a Potentiometer？
To control the speed of a DC motor with a potentiometer, you adjust the resistance in the circuit, which changes the voltage going to the motor. This is a simple and effective way to manually adjust the speed for applications that need it. Here’s how you do it:
Step 1: Connect the Potentiometer:
Connect one end of the potentiometer to the power supply, the other end to the motor, and the wiper (middle terminal) to the motor’s other terminal.
Step 2: Adjust the Potentiometer:
Turn the knob on the potentiometer to change the resistance, which changes the voltage going to the motor, and that changes the speed.
7. How to Control the Speed and Direction of a DC Motor with an Arduino
You can control the speed and direction of a DC motor using an H-bridge and an Arduino. This is great for things like robot cars, where you need to be able to go forwards and backwards, and steer left and right. Here’s how to do it:
Step 1: Get Stuff:
You need an Arduino board, a DC motor, an H-bridge (like L298N), and wires.
Step 2: Wire It Up:
Connect the motor to the H-bridge’s output terminals. Connect the H-bridge’s input terminals to the Arduino’s PWM pins and direction control pins.
Step 3: Write the Code:
Write an Arduino program to control the motor’s speed and direction.
Also, you can control the speed using the formula to calculate the motor’s speed in RPMs (revolutions per minute):
8. Examples of Where You Might Use PWM
● Industrial Automation:
You can use PWM controllers to control the speed of conveyor belts. This helps make sure that the production line runs smoothly and efficiently, which reduces downtime and increases productivity.
● Robotics:
You can use Arduino-based control to control the motors in robotic arms. This allows you to move the arms very accurately. You can use this for things like assembly, welding, and moving things around.
● Electric Vehicles:
You can use advanced control systems to control the motors in electric vehicles. This helps you get the most out of the motors and the batteries. It also helps you manage the energy in the vehicle better, which increases the range and performance of the vehicle.
● Home Automation:
You can use PWM to control the speed of fans, pumps, and other things around your house. This helps you save energy and makes your house more comfortable.
● Medical Devices:
You can use PWM to control the speed of motors in medical devices like infusion pumps. This helps you make sure that you deliver fluids and medications accurately.
Summary:
When you master DC motor speed control, you’ll make your projects more efficient and reliable. Whether you’re using a simple potentiometer or an advanced Arduino setup, you need to know how to do it right.
By comparing different techniques, following best practices, and learning from practical examples, you’ll be able to do it right for your application.
