BLDC Motors

Brushless DC motors, also known as BLDC motors, use electronic commutation instead of brushes. They are often selected for OEM equipment that needs quiet operation, efficient performance, and lower maintenance.

Ruito supplies custom BLDC motors in compact sizes and different configurations. Voltage, speed, torque, shaft, mounting, Hall sensor, encoder, driver, and gearbox options can be reviewed based on your project requirements.

These motors are commonly used in automation systems, medical devices, lab equipment, smart equipment, mobility systems, and compact OEM applications.

Request a Quote
View Motor Options
BLDC motors for OEM applications including automation, medical devices, and smart systems

BLDC motor series with gear motor options

RT3866–BL Series Brushless DC Motor

12V / 24V / 36V | ≤150W | ≤10000RPM
φ38mm × 66mm
Brush Type: Brushless
Certifications: CE, RoHS, REACH

get quote
view specs
RT4255–BL Series Brushless DC Motor

12V / 24V | ≤120W | ≤8000RPM
φ42mm × 55mm
Brush Type: Brushless
Certifications: CE, RoHS, REACH

get quote
view specs
RT5795–BL Series Brushless DC Motor

24V / 36V / 48V | ≤200W | ≤10000RPM
φ57mm × 95mm
Brush Type: Brushless
Certifications: CE, RoHS, REACH

get quote
view specs
BLDC Motor O.D 52mm
RTBLD52 Series BLDC Gear Motor

12V / 24V / 36V | ≤150W | ≤350RPM
φ52mm × 64mm
Brush Type: Brushless
Certifications: CE, RoHS, REACH

get quote
view specs

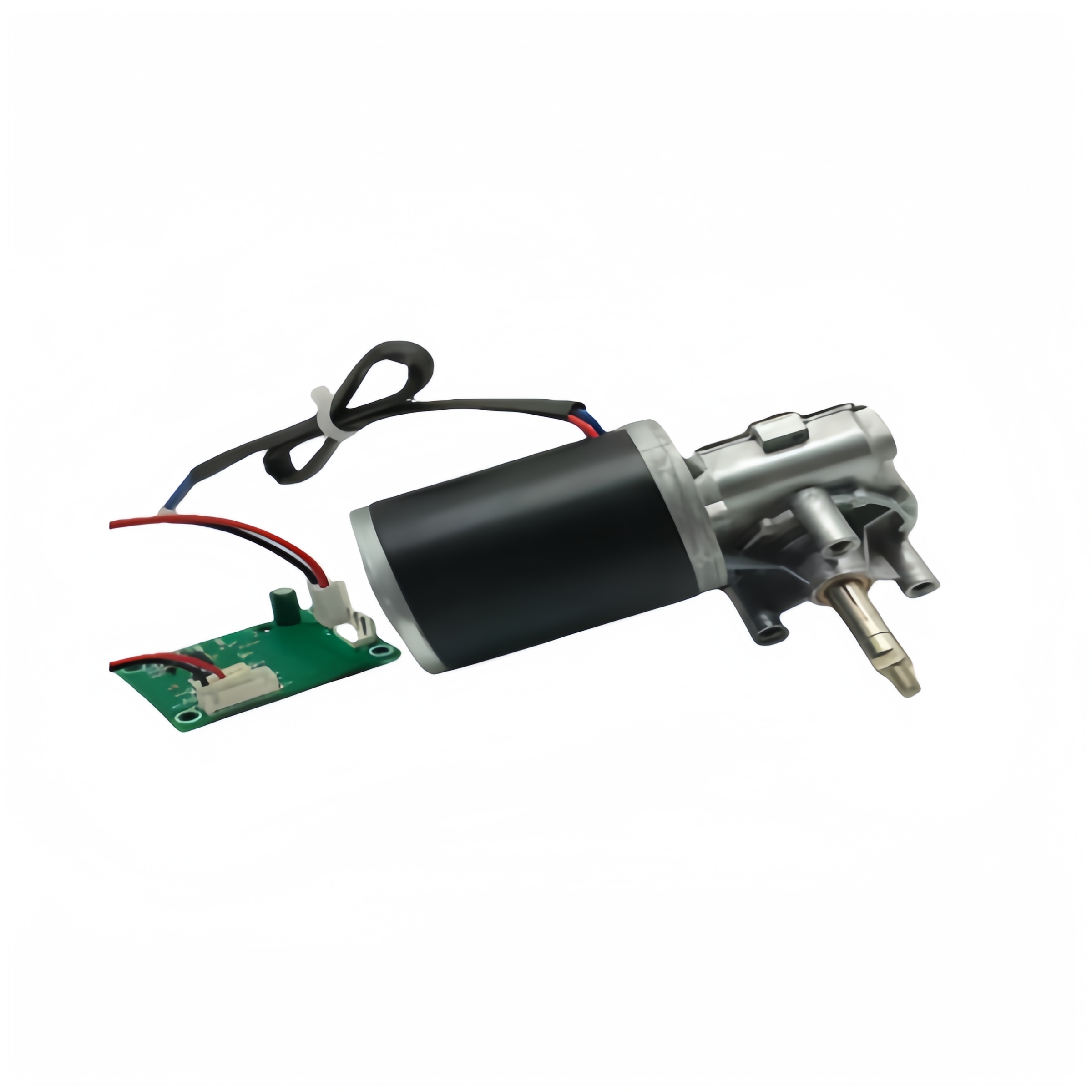

RTBLD60 BLDC gear motor with compact housing and controller board
RTBLD60 Series BLDC Gear Motor

12V / 24V / 36V | ≤150W | ≤350RPM
φ60mm × 70mm
Brush Type: Brushless
Certifications: CE, RoHS, REACH

get quote
view specs
63mm low-speed BLDC motor with gearbox and controller
RTBLD63 Series BLDC Gear Motor

12V / 24V / 36V | ≤150W | ≤350RPM
φ63mm × 85mm
Brush Type: Brushless
Certifications: CE, RoHS, REACH

get quote
view specs

Can’t find The Right BLDC Motor

BLDC motor customization options

Not every BLDC motor fits every equipment design. Ruito supports custom brushless DC motor adjustments based on your voltage, speed, torque, control method, shaft, mounting, and installation requirements.

1. Voltage, speed and torque matching

Tell us your working voltage, target speed, load torque, and duty cycle. We can help check a suitable BLDC motor configuration for your application.

2.Hall sensor, encoder and driver options

For projects that need speed control, position feedback, or specific control signals, Hall sensor, encoder, and driver options can be reviewed based on your system requirements.

3. Shaft, mounting and gearbox options

Shaft length, diameter, mounting holes, motor housing, and gearbox options can be adjusted or checked to match your equipment design.

Need help choosing a BLDC motor?

Send us your voltage, speed, torque, size, control method, and application requirements. Our team will help review a suitable option.

Engineer reviewing technical requirements in an R&D environment
Send Your Requirements

BLDC Motors basics and applications

What is a brushless DC motor?

A brushless DC motor, also known as a BLDC motor, uses electronic commutation instead of brushes to control motor rotation.

This structure helps reduce brush wear and makes the motor suitable for applications that need quiet operation, efficient performance, and lower maintenance.

In a typical BLDC motor system, the motor works together with a driver or controller. Depending on the control method, Hall sensors or encoders can be used to provide speed or position feedback.

BLDC motors are commonly used in automation equipment, medical devices, lab equipment, smart appliances, mobility systems, and compact OEM applications that require stable operation and flexible speed control.

BLDC motor parts with shaft and mounting flanges
Infographic showing BLDC motor applications in medical devices, robotics, EVs, home appliances, and automation systems

BLDC motors are commonly used in compact OEM equipment that needs quiet operation, flexible speed control, and lower maintenance.

Applications of BLDC motors

Application AreaDescription
Automation systemsUsed in compact motion units, feeders, small conveyors, and controlled drive mechanisms.
Medical and lab equipmentSuitable for devices that need quiet operation, stable speed, and lower maintenance.
Small pump systemsUsed in compact air pumps, water pumps, vacuum pumps, and fluid-control equipment.
Fan and ventilation systemsApplied in cooling fans, ventilation units, and airflow-control applications.
Smart equipment and appliancesUsed in smart home devices, cleaning equipment, kitchen appliances, and compact electric mechanisms.
Mobility and care equipmentSuitable for mobility systems, lifting devices, care equipment, and compact drive modules.
BLDC gear motor applicationsUsed when lower speed, higher torque, and better control are needed through gearbox integration.
Industrial OEM productsApplied in customized equipment where compact size, speed control, and reliable operation are required.

What are the advantages of BLDC motors?

AdvantageDescription
Higher efficiencyEElectronic commutation helps reduce brush-related losses and improves operating efficiency in many applications.
Lower maintenanceNo brushes means less brush wear and fewer brush-replacement concerns during operation.
Quiet operationBLDC motors are suitable for equipment where lower noise and smoother operation are important.
Compact designHigh power density makes BLDC motors easier to integrate into space-limited OEM equipment.
Flexible speed controlSpeed can be adjusted with a suitable BLDC driver or controller based on system requirements.
Feedback optionsHall sensors or encoders can be used when speed feedback or position feedback is required.
Gearbox integrationBLDC motors can be combined with gearboxes when lower speed and higher torque are needed.
Suitable for OEM projectsVoltage, speed, torque, shaft, mounting, driver, and gearbox options can be reviewed for custom applications.

Why OEMs Choose BLDC Motors:

✅ Efficient operation for energy-sensitive equipment
✅ Lower maintenance compared with brushed motor designs
✅ Quiet performance for medical, lab, and smart equipment
✅ Flexible speed control with suitable driver options
✅ Optional Hall sensor, encoder, or gearbox integration

How to Decide:

✅ Choose PMDC motors if your project values simple control, lower initial cost, and easy replacement.

✅ Choose BLDC motors if your project needs quiet operation, lower maintenance, efficient performance, or driver-based speed control.

PMDC vs BLDC motor: which one fits your application?

⚡PMDC Motors (Brushed DC Motors)

PMDC motors, also known as brushed DC motors, are often used when the application needs a simple structure, easy control, and a cost-effective motor option.

  • Simple structure and easy speed control
  • Usually lower upfront cost
  • Suitable for many compact OEM applications
  • Brushes may wear over time and require maintenance

⚡ BLDC Motors (Brushless DC Motors)

BLDC motors, or brushless DC motors, are often selected when the project needs lower maintenance, quieter operation, efficient performance, or more advanced speed control with a suitable driver.

  • No brushes, reducing brush wear and maintenance
  • Quiet operation and efficient performance
  • Can support Hall sensor, encoder, or driver options
  • Suitable for automation, medical devices, lab equipment, smart equipment, and compact OEM systems

How to choose the right BLDC motor

Choosing a BLDC motor is not only about voltage or motor size. The right option should match your speed, torque, control method, feedback requirements, installation space, and working conditions.

1. Voltage, speed and torque

  • Confirm the working voltage, target speed, load torque, and duty cycle. These details help determine the right motor size and winding configuration.

2. Driver and control method

  • BLDC motors need a suitable driver or controller. Please let us know your control method, such as speed control, direction control, PWM signal, analog signal, or other system requirements.

3. Hall sensor, encoder and feedback

  • If your project needs speed feedback, position feedback, or more stable control, Hall sensor or encoder options can be reviewed based on your application.

4. Motor size and installation space

  • Check the motor diameter, body length, shaft size, mounting holes, wire direction, and available space inside your equipment.

5. Gearbox and output requirements

  • If lower speed or higher output torque is needed, a BLDC gear motor option can be considered. Gear ratio, output shaft, and gearbox direction should match your equipment design.

6. Sample testing and production plan

  • For customized BLDC motor projects, sample testing is usually recommended before batch production to confirm speed, torque, noise, temperature rise, and control compatibility.
Request a Quote
View Motor Options

Why Choose Ruito for BLDC Motors?

Custom brushless DC motor support for OEM projects, from sample testing to batch production

Team collaboration symbolizing reliable PMDC motor supplier partnerships

Ruito supports OEM customers with customized BLDC motors, practical engineering support, and clear communication from sample testing to production.

What Ruito can support

1. Tested motor quality: Each BLDC motor is checked before shipment to help ensure stable operation, proper assembly, and reliable performance.

2. Flexible BLDC customization: Voltage, speed, torque, shaft, mounting, Hall sensor, encoder, driver, and gearbox options can be reviewed based on your project needs.

3. OEM project experience: We support compact brushless motor applications for automation systems, medical devices, lab equipment, smart equipment, mobility systems, and industrial products.

4. Clear engineering communication: Our team helps review drawings, specifications, reference samples, control requirements, and test feedback before production.

5. Sample and production support: From sample orders to batch production, we help coordinate lead time, packing, test feedback, and shipment details.

Request a Quote
See Motor Options

FAQs about BLDC motors and working with Ruito

Our BLDC motors can be customized by voltage, speed, torque, motor diameter, shaft size, mounting style, Hall sensor, encoder, driver, gearbox, and other project requirements. Share your target specifications and application details, and we can help check a suitable option.

MOQ depends on the motor model and customization level. For standard or existing designs, small trial orders may be accepted. For customized BLDC motors, MOQ will depend on tooling, material, driver requirements, and production conditions.

Yes, sample orders are available for testing and evaluation. Sample cost and shipping depend on the motor model, customization requirements, driver options, and destination.

Lead time depends on the motor model, customization level, driver or gearbox requirements, and order quantity. Standard samples usually take around 2–4 weeks, while bulk orders are commonly around 4–6 weeks after confirmation.

Our motors can support common compliance requirements such as CE, RoHS, and REACH. If your project requires specific certification documents or testing, please let us know in advance.

Yes. Our team can help review your application requirements, drawings, reference samples, speed and torque needs, Hall sensor or encoder requirements, driver options, and test feedback to check a suitable BLDC motor option.

Warranty is usually 1–2 years depending on the motor type and application conditions. If a quality issue occurs under normal use, we will help review the case and provide a suitable solution.

Yes. We can help review suitable driver or controller options based on your voltage, power, speed control method, direction control, Hall sensor, encoder, and system requirements.

Still have questions? Send us your BLDC motor requirements, and our team will help review a suitable option.
