Introduction
DC motors are widely used in modern motion systems due to their responsiveness, easy speed control, and compact design. Whether in robotics, medical devices, or automated systems, their ability to deliver controlled torque at various speeds makes them a practical choice across industries.
This article breaks down how DC motors work, what types are available, how they’re controlled, and how to select the right one for your application.
How DC Motors Work？
At the core of a DC motor is the principle of electromagnetism. When direct current flows through a coil of wire inside the motor, it generates a magnetic field. This field interacts with either a permanent magnet or another magnetic field in the stator, producing a force that causes the motor shaft (rotor) to spin.
To sustain this motion, the current direction in the windings must switch at precise intervals—a process called commutation. In brushed motors, this is done mechanically through brushes and a commutator. In brushless motors, electronic sensors and controllers manage the timing.
Key Components of a DC Motor
- Stator: The stationary section, either a permanent magnet or electromagnetic coil, which provides a magnetic field.
- Rotor (Armature): The rotating shaft that carries current and creates motion.
- Commutator: In brushed motors, this reverses current flow to keep the rotor turning.
- Brushes: Spring-loaded contacts that transfer current to the rotor (only used in brushed motors).
Brushless motors eliminate the need for brushes and commutators, reducing mechanical wear and improving lifespan.

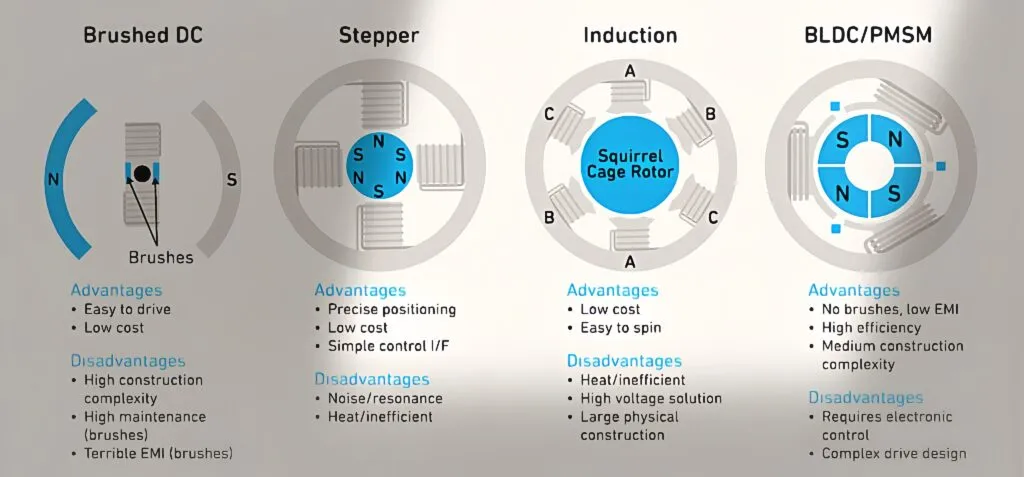

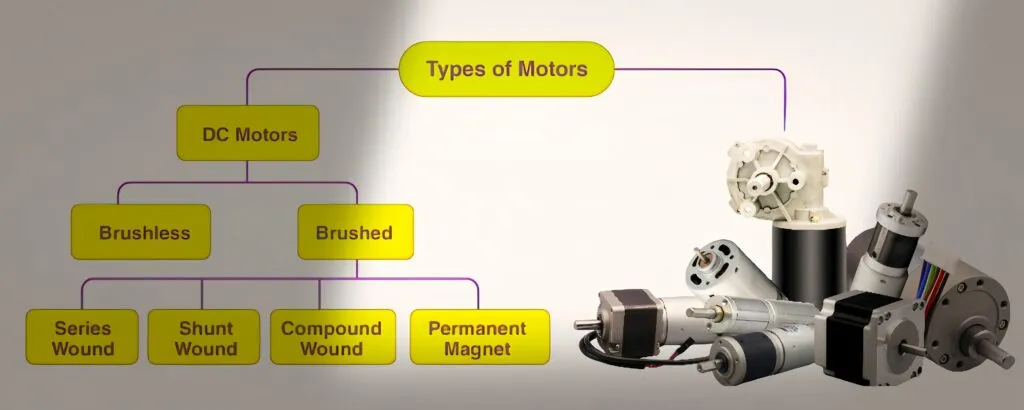

Types of DC Motors

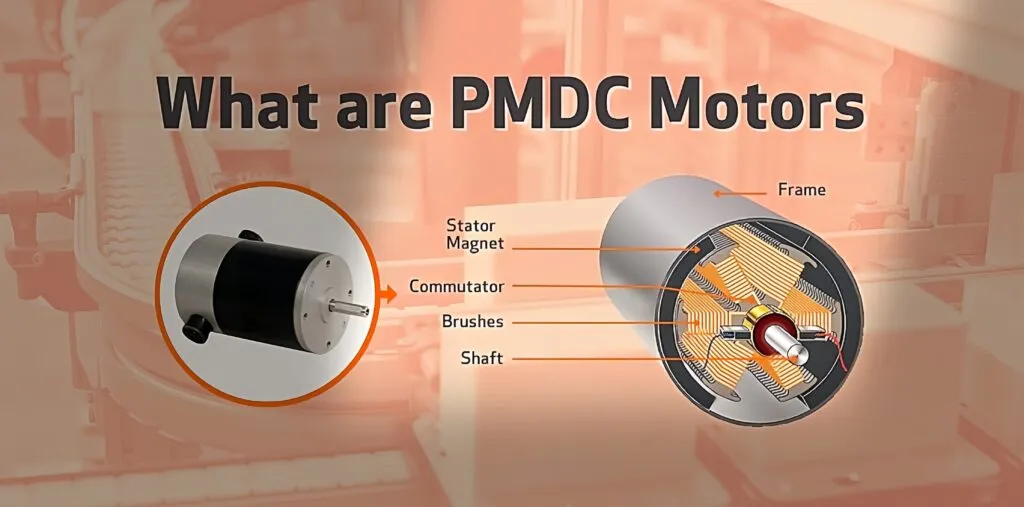

Permanent Magnet DC Motors
These motors use permanent magnets in the stator and are commonly divided into two configurations:
Brushed PMDC Motors
- Use brushes and a commutator to manage current direction.
- Simple, compact, and low-cost.
- Suitable for applications such as vending machines, personal appliances, and entry-level automation.
Brushless DC Motors (BLDC)
- Use electronic control to switch current, eliminating brushes.
- Higher efficiency (up to ~90%), quiet operation, and longer service life.
- Often found in medical equipment, battery-powered tools, robotics, and HVAC systems.
Note: A subtype of BLDC motors is the Stepper Motor, which moves in precise increments and provides holding torque. These are ideal for positioning systems and motion control in robotics.
Wound-Field DC Motors
These motors use electromagnetic windings in both the stator and rotor, making them suitable for larger or industrial applications.
Series Wound Motors:
Provide very high starting torque; however, their speed varies with load. Used in power tools, cranes, and automotive starters.
Shunt Wound Motors:
Deliver stable speed regardless of load fluctuations. Common in mixers, conveyors, and hoists where speed consistency is essential.
Compound Motors:
Combine features of series and shunt motors to balance torque and speed control. Often used in presses, elevators, and packaging machinery.
DC Motor Control: Speed, Direction & Efficiency
One of the main advantages of DC motors is the ease of control. Their speed is directly proportional to the voltage applied, making speed adjustment simple and responsive.
- Speed Control: Achieved using PWM (Pulse Width Modulation), which regulates voltage without excessive power loss.
- Direction Control: Changing polarity reverses the motor’s direction. An H-bridge circuit is commonly used to automate this process.
More advanced systems may include feedback mechanisms (e.g. tachometers or encoders) to maintain consistent speed under varying loads.
Brushless motors typically integrate speed control within their driver electronics, while brushed motors allow for more basic, manual control setups.
How to Choose the Right DC Motor
Selecting the right motor involves balancing electrical, mechanical, and environmental requirements. Key factors include:
- Voltage availability: Match the motor voltage to your power source.
- Required torque and speed (RPM): Determine load profile and desired response.
- Duty cycle: Continuous or intermittent operation affects motor sizing.
- Size and mounting constraints: Ensure compatibility with your design space.
- Noise and efficiency requirements: Critical in medical or battery-powered applications.
General Recommendations:
| Application Need | Suggested Motor Type |
|---|---|
| Budget-sensitive, low complexity | Brushed PMDC Motor |
| Energy-efficient, compact design | Brushless DC Motor (BLDC) |
| High starting torque | Series Wound Motor |
| Consistent speed under variable load | Shunt Wound Motor |
| Torque and speed balance | Compound Motor |
| Precise positioning or holding | Stepper Motor (BLDC subtype) |
Common Applications
DC motors are found in a wide range of sectors:
- Medical & Laboratory: Peristaltic pumps, sample handlers, surgical devices
- Industrial Automation: Conveyors, label applicators, pick-and-place arms
- Mobility Systems: Electric lifts, adjustable tables, rehab equipment
- Home & Office Devices: Curtain systems, fans, automated kitchen tools
- Consumer Electronics: Drones, toys, small robots
Their versatility comes from their ability to deliver targeted motion in compact, easily controlled packages.
Conclusion
DC motors remain a go-to choice for motion control due to their simplicity, controllability, and performance. Whether you’re working on a cost-sensitive consumer product or a precision industrial system, understanding the different types of DC motors—and their characteristics—can help ensure your application runs efficiently and reliably.
If you’re unsure which motor fits your design, our team can help you evaluate your requirements and guide you toward the right solution.
Explore our DC motor options or get in touch with our engineering team to start your selection process.
