D63W DC gear motor for automatic door system

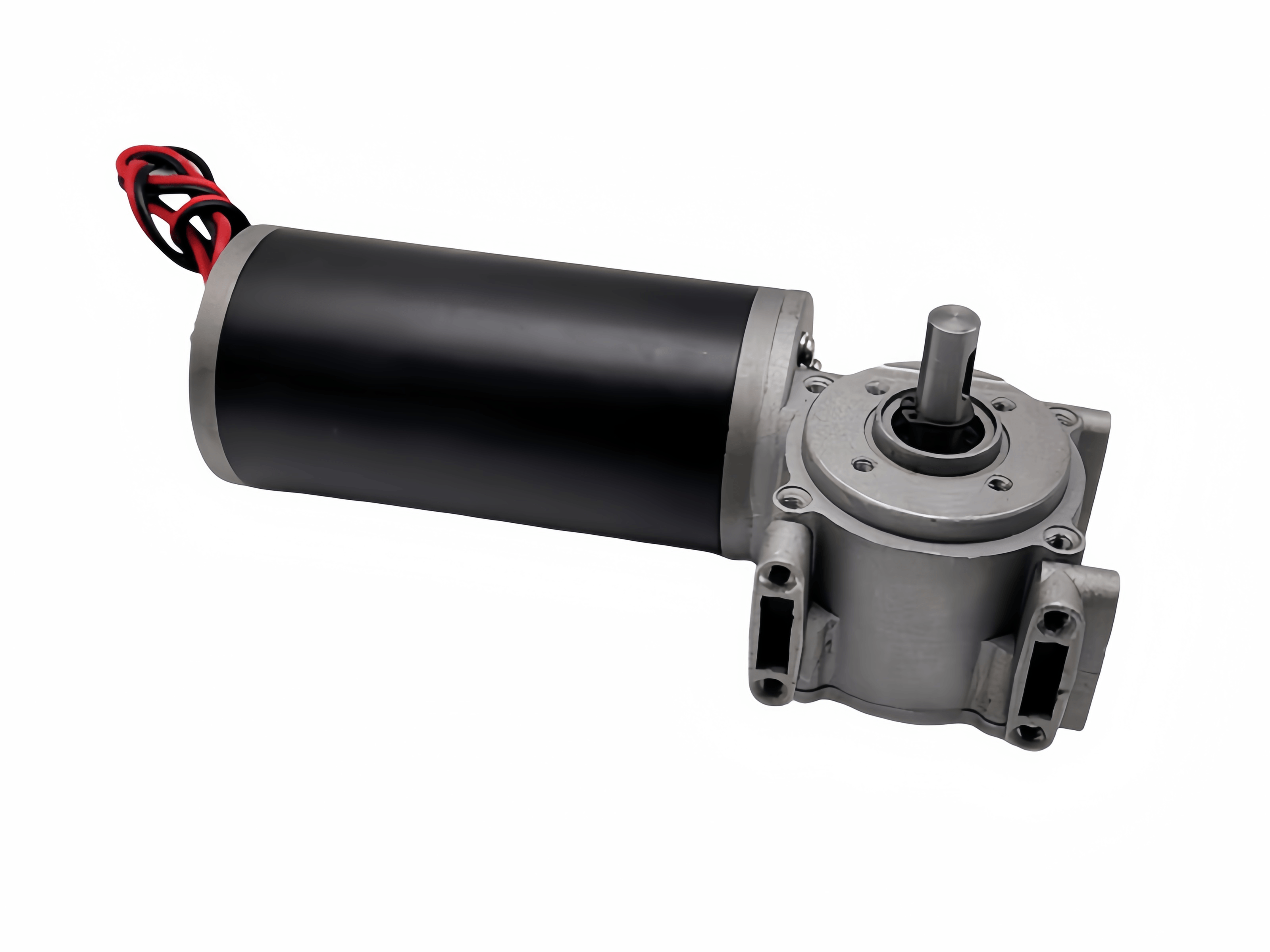

D63W DC Gear Motor for Automatic Door Systems

The D63W is a compact DC gear motor for automatic door systems, access control doors, and OEM door mechanisms. Speed, torque, shaft design, wiring, pulley, and mounting details can be reviewed based on your drawing, sample, or installation requirements.

  • Model: RTD63W Series
  • Voltage: 24V / 30V reference options
  • Power: 80W–240W reference range
  • Output Speed: 68–350 RPM reference range
  • Gear Ratio: Custom options available
  • Motor Length: 85mm / 110mm reference options
  • Application: Automatic doors, access systems, and OEM door mechanisms







ask for quote

Product Details

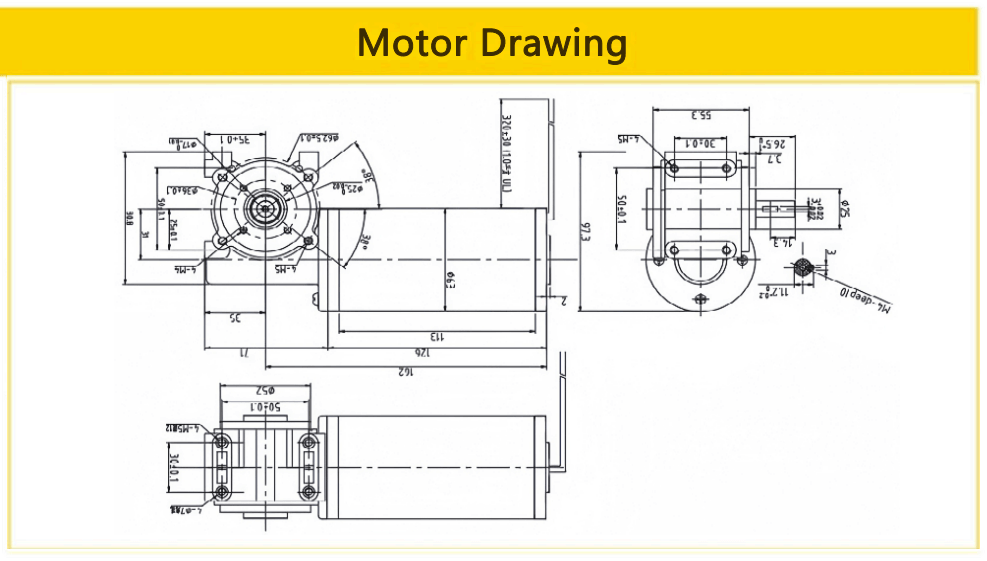

D63W DC gear motor for automatic door system drawing

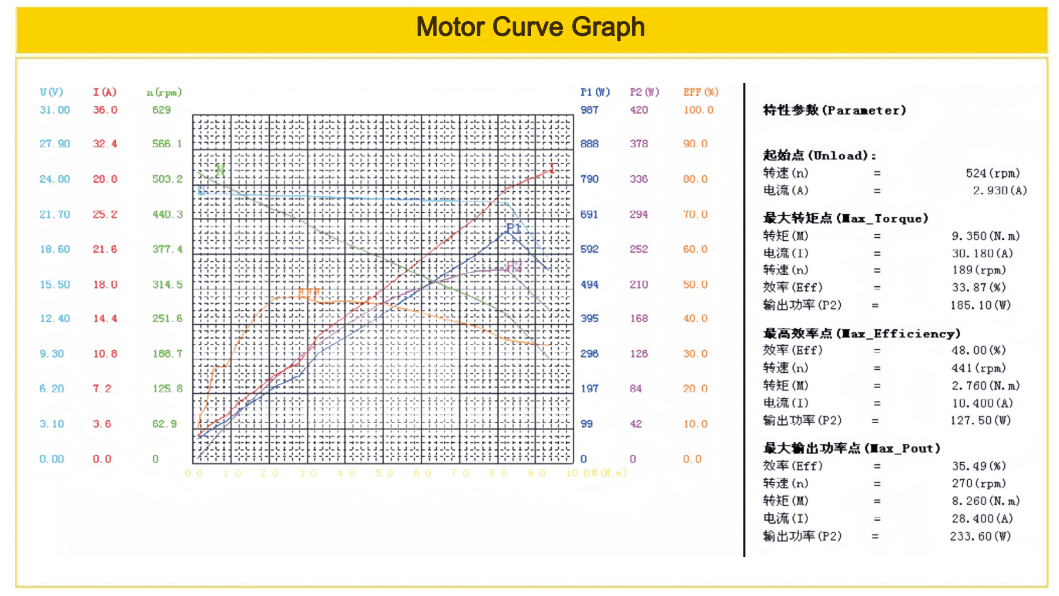

D63W DC gear motor for automatic door system test curve

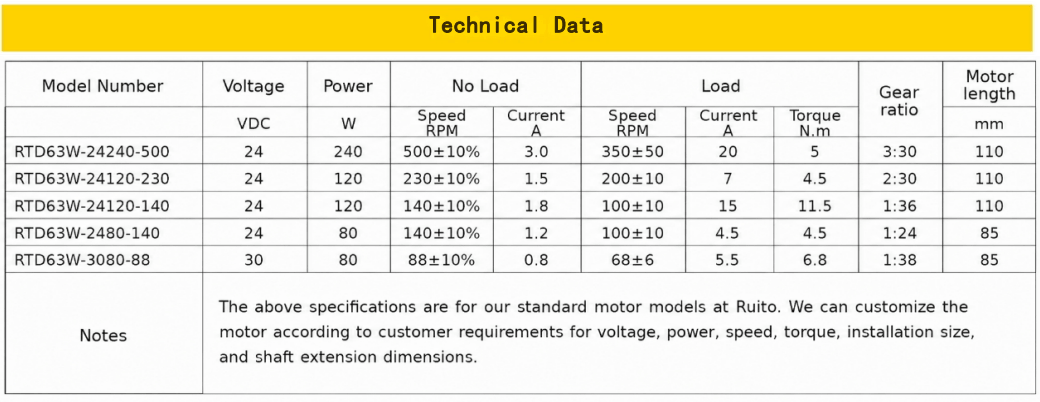

D63W DC gear motor for automatic door system test data













Ruito—Specialized in PMDC Motors, Gear Motors, and BLDC Motors. Committed to quality and innovation. Certified by RoHS, CE, REACH, and ISO 9001.
